At a glance

Max weight: 5,151 lbs.

Capacity: 1pilot + 6/7
passengers

Powerplant: 1 Turbomeca
Arriel 2B1

Fast cruise speed: 130 kts.

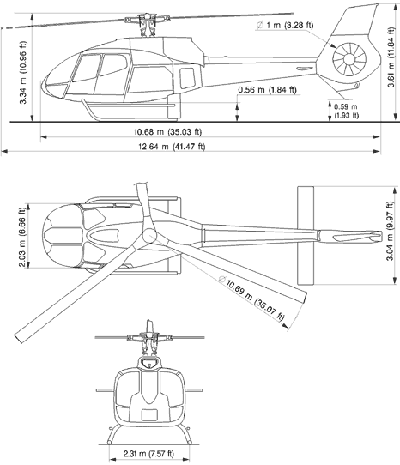

External dimensions

Overall length with blade in front: 41.47 ft

Minimum width with all blades: 35.07 ft

Overall width with blades folded: 10.00 ft

Documentation

EC130B4 technical files

General data

Empty weight of standard aircraft: 3,038 lbs.

Maximum takeoff weight: 5,351 lbs.

Useful load: 2,313 lbs.

Maximum takeoff weight (with external load): 6,172 lbs.

Usable fuel capacity (standard tank): 143 gal.

Powerplant: 1 Turbomeca Arriel 2B1

Cabin volume: 130.7 cu. ft.

Baggage compartment volume: 38.7 cu. ft.

Standard seating capacity: 1+6 or 1+7

*Performance data

Never exceed speed: 155 kts.

Fast cruise speed: 130 kts.

Maximum range (with no reserves): 329 nm.

Maximum endurance (with no reserves):
3.8 hrs.

Hover In ground effect ceiling (5 ft. skid height): 10,165 ft.

Hover out of ground effect ceiling: 8,325 ft.

Takeoff power: 847 shp.

Rate of climb: 1,770 fpm.

* Performance data is provided at Sea Level, ISA conditions, maximum gross weight, with standard fuel. It    is not intended for flight planning purposes.
